AST5248

Product information

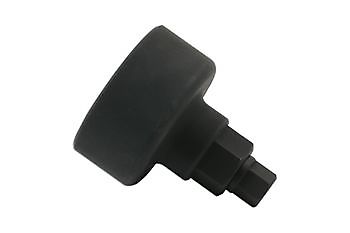

High pressure pump wheel disassembly tool
VW VAG 1.4 1.6 2.0 TDi to be used as T10489".
For removing the high-pressure fuel pump from 1.4, 1.6 and 2.0 liter TDi engines.

15-mm hexagonal thrust screw and 24-mm hexagonal retainer.

Can be used on:
Audi A3 (from 2013)
Seat Alhambra (from 2011), Ibiza 2008, Leon 2013 and Ateca
Skoda Rapid (from 2012), Octavia (from 2013), Fabia 2014, Superb (from 2015), Kodiaq 2016
Volkswagen Golf (from 2013),

REMARK:
Use according to OEM instructions.
Use only hand tools and lubricate the thrust screw with molybdenum disulfide grease.


Outil de dismontage pompe haute pression roue
VW VAG 1.4 1.6 2.0 TDi à utiliser comme T10489.
Pour the injection of the pump into the high pressure carburettor of the engines 1.4, 1.6 and 2.0 liters TDi.

Vis de pressure hexagonale de 15 mm et hexagone de maintien de 24 mm.

Finally, it is used:
Audi A3 (partir de 2013)
Seat Alhambra (from 2011), Ibiza 2008, Leon 2013 and Ateca
Skoda Rapid (depuis 2012), Octavia (depuis 2013), Fabia 2014, Superb (depuis 2015), Kodiaq 2016
Volkswagen Golf (partir de 2013),

AVIS :
Utilizer selon les instructions de l\'équipementier.
Utilize the uniqueness of the manual tools and make the most of the impression of the grain from the bisulfur of the molybdène.
