AST6225

Product information

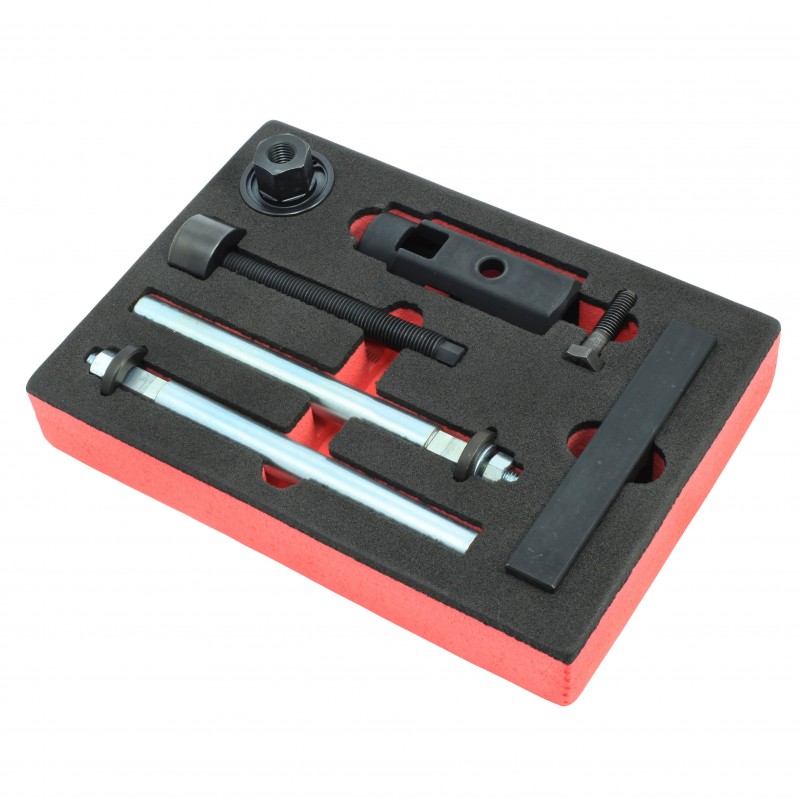

Diesel Injector Removal Tool - 2.0TDCi Ford EcoBlue
AST6225 Injector Removal Tool has been designed to pull out Ford EcoBlue diesel injectors in one piece, without need to break off the fuel return connector and the electronic Piezo head which would render the injector unusable.

AST6225 is suitable for mildly seized injectors only, as described in the OE General Service Bulletin. Important Note: Ford General Service Bulletin FGSB-7024 states that the applied torque must not exceed 25Nm.

If the injectors cannot be removed using AST6225, the injector should be split. The uppermost part of the injector, comprising the fuel inlet and upper injector body can simply be unscrewed, then a suitable injector removal tool should be used to extract the remaining body and nozzle of the injector, such as AST6260.

Equivalent to OE reference: 303-1706

Models

Ford
Edge
Focus (\'19)
Galaxy (\'15)
Kuga (\'19)
Ranger
S-MAX (\'15)
Tourneo Custom
Transit (\'14)
Transit Custom

Engines
BC2X
BCCA
BCCB
BCCC
BCFB
BCRA
BJFA
BJFB
BJFC
BJFD
BJRA
BJRB
BKFA
BKFB
BKFC
BKFD
BKRA
BKRB
BLFA
BLFB
BLFC
BLFD
BLHA
BLRA
BLRB
YL2X
YLCA
YLDA
YLF6
YLFA
YLFB
YLFS
YLR6
YLRA
YMCA
YMCB
YMF6
YMFA
YMFB
YMFS
YMHA
YMR6
YMRA
YN2X
YNCA
YNF6
YNFA
YNFB
YNFS
YNR6
YNRA
